Smoke (UL) Sensor

Smoke Sensor



non-relevant transparent gif
no pc required for the ServersCheck to operate once configured The smoke sensor is a photoelectric smoke sensor for monitoring smoke inside facilities. The security smoke detector comes with in-built dust compensation, a patented CleanMe® feature, a replaceable optical chamber, and an in-built sounder.

The smoke sensor works on the light-scattering principle. A pulsed infrared light-emitting diode serves as the light source, and a high-speed photo diode as the sensing element. This design has superior protection against false/nuisance alarms caused by dust, RF, and ambient light. The proprietary optical chamber is field replaceable.

The sensor does not replace building fire detection systems where such systems are required. It does complement such systems.

non-relevant transparent gif

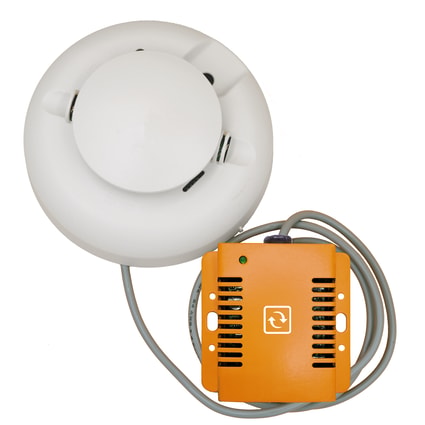

Smoke Sensor Probe (SEC-SMOKE)
Smoke sensor small
Ceiling mountable smoke sensor (screw mount)
UL rated
Photoelectric smoke detection
Built-in Drift Compensation Reduces False Alarms
Self-diagnostics Meets NFPA 72 Sensitivity Testing Requirements without the Need for External Meters
Replaceable Optical Chamber Makes Any Required Cleaning a Snap
Probe dimensions: 74 mm (2.9") x 66 mm (2.59") x 22 mm (0.8")
Probe housing: Orange metal case with status led
Probe mounting: 0U Rack (screw mount)
SensorGateway small The SensorGateway is required for this sensor.
Requires SensorGateway v5.1+ with firmware 7+

Network communication protocols: SNMPv2,v3 XML, JSON, HTTP and Modbus TCP
Base Unit Operating temperature range: 0ºC to +75ºC (32ºF to +167ºF)
Operating humidity range: < 90% rH (non-condensating).
RJ45 small Sensor connects via regular straight RJ45 cable to the SensorGateway.
Maxmimum distance between probe and SensorGateway is 100m/330ft when using a CAT6 or CAT7 cable (subject to cable quality and interference)
