PoE & SNMP Enabled IP Networked Temperature Monitoring Sensor Gateway
Power Over Ethernet (PoE) - Web - SNMP - SNMP Traps - Email - Calibratable - Rack Mountable - Industrial Grade

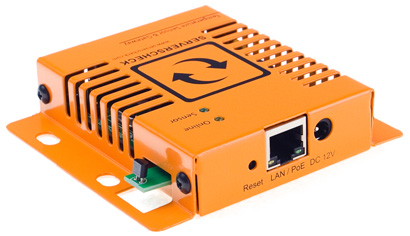

ServersCheck PoE & SNMP Ethernet (IP) SensorGateway with Built-in Temperature Probe




The ServersCheck SensorGateway: probably one of the most cost effective IP, PoE & SNMP temperature sensors.

ServersCheck offers its SNMP, IP & PoE enabled thermometer for monitoring temperature 24x7. The sensor is powered through PoE or power adapter and has a built-in temperature probe. Each SensorGateway has its own IP address and has a built-in web server.

The SensorGateway continously reads sensor probe values, compares them to preset thresholds and generates alerts via email from inside the box. For centralized monitoring of multiple sensors or for SMS alerting capabilities, you can go for the ServersCheck Monitoring Appliance or ServersCheck Monitoring Software. Third party Network Management Systems like Nagios, MRTG, WhatsUp, Tivoli, OpenView can also communicate with ServersCheck's sensors using SNMP.

To the SensorGateway you can add up to 2 additional external sensor probes: temperature, humidity, flooding or power failure.

Possible use of the SensorGateway
Data centers, server room, equipment shelters, hospitals, laboratory, hospital, storage area's, utility, gas, oil, mining, ...






SNMP & PoE SensorGateway with built-in Temperature Sensor
Operating temperature range: 0ºC to +75ºC (32ºF to +167ºF) in PoE mode
Operating humidity range: < 90% rH (non-condensating)
Dimensions: 70 mm (2.7") x 88 mm (3.4") x 22 mm (0.8")
Housing: Orange metal casing with two LED status indicators
TCP/IP: IPv4 at 10/100 Mbps
PoE: IEEE 802.3af
TÜV-Nord Certified. CE Class B (Industrial). FCC Class A, part 15.
Built-in: temperature sensor, web server, SNMP agent (v1 & v2), alerting via email & SNMP Traps
Optional Power Adapter for SensorGateway
Default power is through PoE. Customers not having PoE can use Power Adapters.
Power Adapter Style: EU, UK or US
Power Adapter Specs: 12 VDC/0.5A, switching, 3.5mm connector


External Temperature Probe and Built-In Temperature Sensor Speficic Data
Temperature Resolution: 0.1°C / 0.18°F precision
Temperature Reading: -55°C to +125°C (-67ºF to +257ºF) / SensorGateway operates up to 75°C (167°F)
Temperature Accuracy1: +/- 0.5ºC (+/- 0.9 ºF) over 0ºC to +75ºC / 32°F to 167°F
Readings in Celsius or Fahrenheit


1: Built-in temperature has automatic calibration upon restart and while calibration is performed accuracy is +/- 2ºC (+/- 4ºF)
