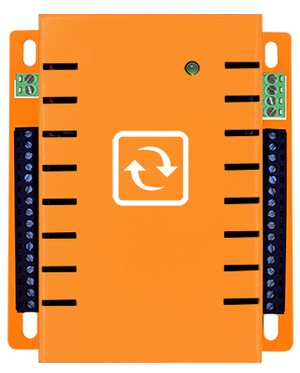

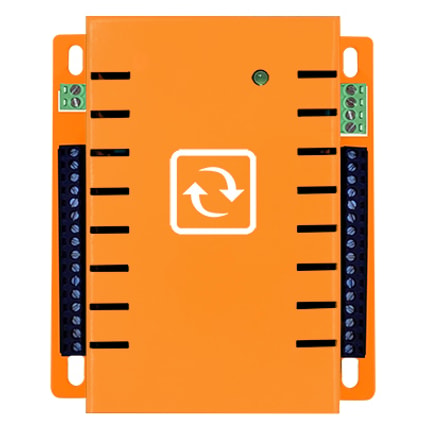

Dry Contact Sensor Probe
IO sensor with 16 dry contact inputs & 4 dry contact outputs
The InfraSensing Dry Contact (voltage free contact) sensor monitors the state of any electrical dry contact output enabled device and can control equipment using one of its 4 outputs. Examples of such devices: alarms, generators, control relays, valves, fans, HVAC, ...
The sensor has 16 distinct dry contact inputs. They can be configured (on a per port basis) to monitor either a normal open (NO) or normal closed (NC) state. Not only can you define the normal state but you can also set a minimum time that a state should be in before triggering an alarm.
On top of the 16 inputs, the device also features 4 outputs. With the outputs you can control equipment.
- compact plug & play sensor.
- designed for indoor use.
- steel enclosure for non-power sensors or non-IP sensors. custom color & logo options available.
- industrial grade.
- 0u rack, DIN rail, magnetic or wall mountable sensor.
- plugs into the base unit.
- powered by the base unit (PoE, 12v DC, optionally 24v or -48v)
- alerts via SNMP Traps, email or SMS.
- out of the box integration via Modbus TCP, SNMP.
- optional integration via MQTT for Industrial IoT applications1
.
- optional integration via RS-485 enabling direct integration with your own gateway & controllers.2
1Requires FW 10 or higher
2Some sensors are not available in RS-485 native versions. In that case RS-485 is available using the optional Modbus RTU module.
