SNMP & Modbus AC or DC Power Failure Sensor

non-relevant transparent gif
no pc required for the ServersCheck to operate once configured Almost any server room is equipped with UPS systems (batteries) that kick in when the main power supply goes out. However knowing when this occurs is a different thing. While the more expensive UPS systems have some kind of management and alerting system, the most popular ones don't have it.

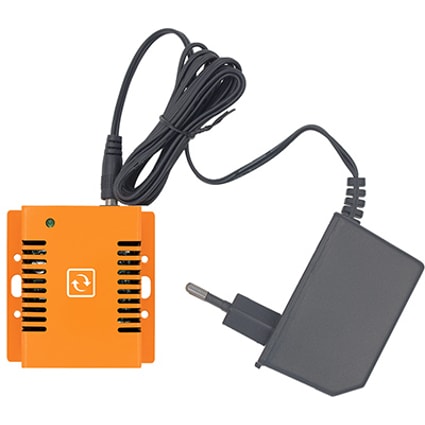

The power failure sensors from ServersCheck enable you to get alerts when the main power goes out. The sensor comes with an external power adapter that is plugged into the main power line. The sensor itself has to be powered by a UPS system so that it still can send alerts in the event of a mains power outage. By default alerts are sent by the sensor through the base unit via email, SMS and SNMP Traps. You can also use the sensor to safely shutdown your servers in the event of a detected power failure.

The sensors are PoE, Modbus and SNMP enabled. The sensor can be queried in real time by any SNMP capable network management system such as Tivoli, OpenView, Nagios, MRTG, ...

Using our free simple Perl script, safely shutdown your Linux servers when a power failure is detected. On Windows you can use the free Powershell script to perform a safe shutdown of your Windows servers in the event of a power failure reading from the sensor.

non-relevant transparent gif
Technical Specifications - AC or DC Power Failure Sensor (PWR-AC-FAIL or PWR-DC-FAIL)
Operating temperature range: -40C to +75C (-40F to +167F)
Operating humidity range: < 90% rH (non-condensating)
Provides a ON/OFF indication in SensorGateway
Dimensions: 74 mm (2.9") x 66 mm (2.59") x 22 mm (0.8")
Housing: Orange metal case with status led
0U Rack mountable
Power adapter small AC Power Adapter for sensing main power status
Power Adapter Style: EU, UK or US
Power Adapter Specs:
- Input: Autoswitching 90-240 VAC/47-63 Hz
- Output: 9 VDC, 1.5 A, 2 m cord terminated with 2.1 mm (center positive) plug.
Consists of a clip (BASE-PWR-CLIP) and adapter (BASE-PRW-ADAPTER)
OR DC Power Adapter for sensing DC power status
0-12v DC input
The SensorGateway is required for this sensor.
Requires SensorGateway v5.1+ with firmware 8+
Network communication protocols: SNMPv2,v3 XML, JSON, HTTP and Modbus TCP
Operating temperature range: 0C to +75C (32F to +167F)
Operating humidity range: < 90% rH (non-condensating).
Sensor connects via regular straight RJ45 cable to the SensorGateway.
Maxmimum distance between probe and SensorGateway is 100m/330ft when using a CAT6 or CAT7 cable (subject to cable quality and interference)
